RDGLZ Series (Changeover)

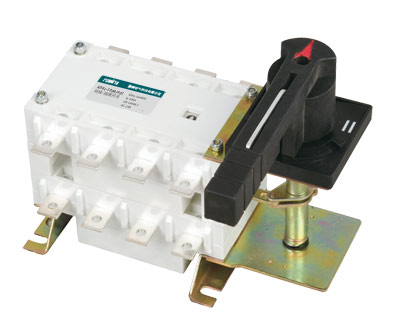

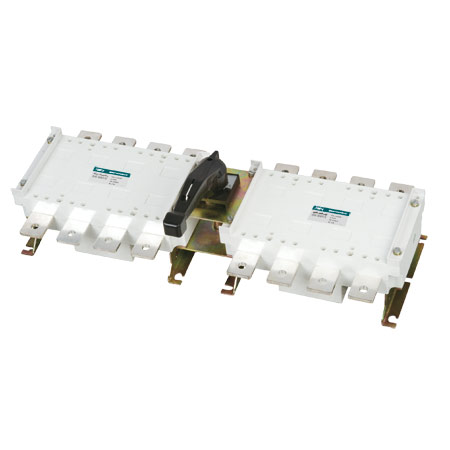

RDGLZ-125-3150A Changeover Load Isolation Switch

● RDGLZ-125-3150A is applied to changeover two groups of low voltage electric circuit or two groups of load devices or safety isolation.

● Mode of operation:

Direct operation:handle is installed on the switch

Operation outside:handle is installed outside the door of power distribution board.

● The product with observation window can be provided according to the demand to observe directly the on and off state of contact.

● It have three poles and four poles (three poles + on and off neutral pole)

● Two groups of auxiliary contacts can be assembled.

● Extended shaft is used for the operation outside the board.

● Mechanical performance and electrical performance are correspond to RDGL-125A-3150A property.

● The bridge connecting conductor can provided to connect the inlet or outlet terminals of the switch.

Note:The bridge connection is chosen, and it need to indicate the inlet or outlet connection with it.
